Milwaukee

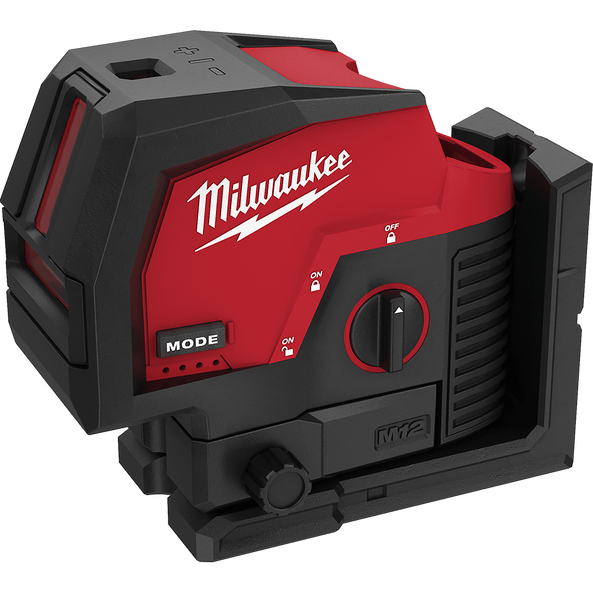

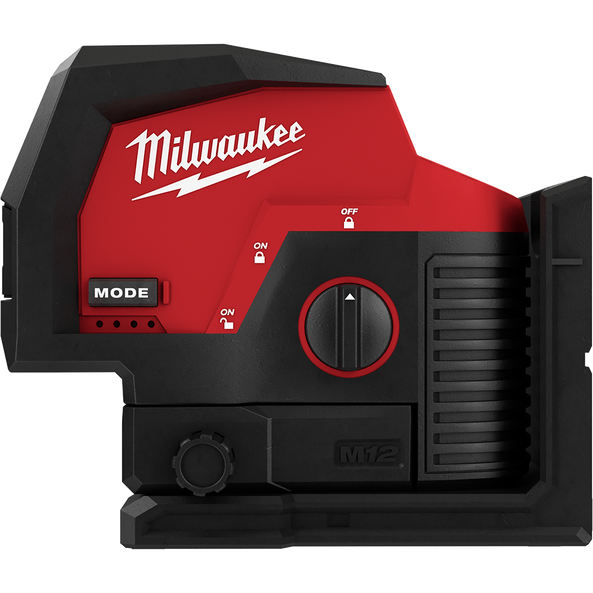

M12 Cross Line + 2 Plumb Laser Tool Only

M12 Cross Line + 2 Plumb Laser Tool Only

SKU: M12CPL-0C | Milwaukee
Regular price $679.00 AUD
Regular price Sale price $679.00 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

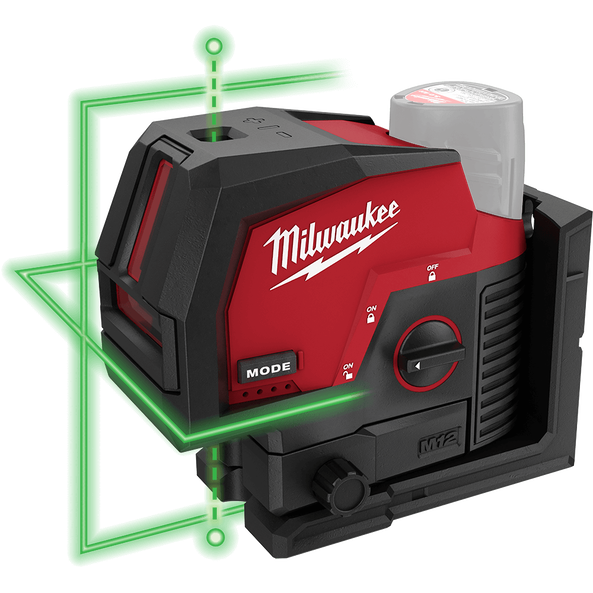

The M12™ Cross Line + 2 Plumb laser provides an all-in-one functionality with horizontal levelling, vertical alignment and plumb point transfer from floor to ceiling. Powered by our M12™ batteries, users will get 15hours of continuous run-time with a M12B3 battery pack for ultimate productivity. The high-intensity green laser offers you superior visibility up to 38m for long-range applications. The vertical and horizontal lines make alignment and level applications easy, while the two plumb dots allow for quick transfers from floor to ceiling. The integrated magnetic bracket features micro control and pivots on the plumb point for easy and fast alignment. The M12™ Cross Line + 2 Plumb Laser features amplified rare earth magnets, providing a strong hold onto metal surfaces with the integrated screw and nail hang holes allowing easy and efficient setup in any environment.

FEATURES

15 hours of runtime on a single charge using M12™ REDLITHIUM™-ION 3.0Ah battery
Visibility range of up to 38 m
High intensity green beams provide up to 4x the brightness compared to red lasers
1 m drop rating
IP 54 rating to protect the laser from harsh jobsite conditions
3 mode pendulum system: Manual Mode for use at any angle, Self-Levelling Mode that indicates out-of-level condition with a 4° self-levelling range and Pendulum Lock Mode to protect components during transport
360° rotation that pivots on plumb point, with an integrated micro control knob for faster point to point alignment
Fuel gauge on the top and side of the laser allows for fast checking of battery charge
Integrated magnetic bracket with rear mounted amplified rare earth magnets, 1/4" and 5/8″ tripod thread and hang hole allows for attachment to steel stud, wooden stud and tripod (48351411)

SPECIFICATIONS

PLATFORM: M12™
IP RATINGS: IP54​
DIMENSIONS: 173 x 74 x 145 mm​
WEIGHT: 1.0 kg​
WARRANTY: 3 Years
LOCKING PENDULUM: ​Yes​
PLUMB POINT ACCESS​: 2" (51 mm)​
SELF-LEVELING​: ± 4° Tilt​
ACCURACY: ± 3.18 mm over 10 m​
IMPACT RESISTANT​: 1 m​
WORKING RANGE​: 38 m​
RANGE WITH DETECTOR: ​50 m​
THREAD MOUNT​: 1/4"-20, 5/8"-11​

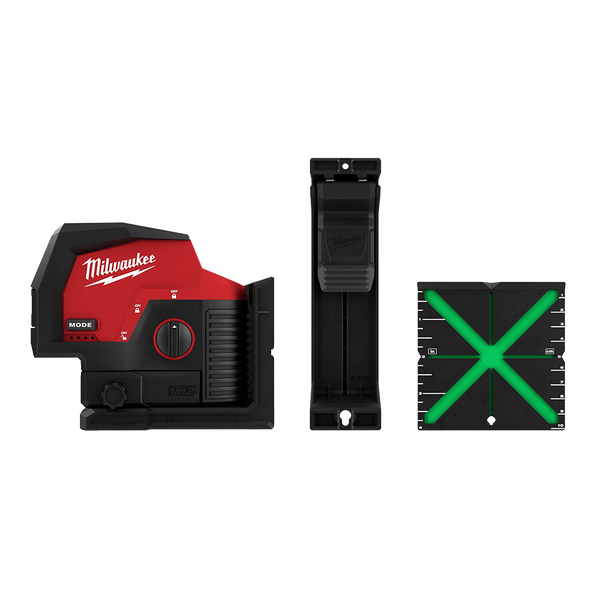

WHAT'S INCLUDED

(1) M12™ Cross Line + 2 Plumb Laser (M12CPL)
(1) Laser Track Clip with Quick Connect (48351313)
(1) Laser Target (48351111)
(1) Carrying Case
